Compressed Air Dryers
Compressed air has applications in virtually all industries. Its uses range from being a reliable source of pneumatic power in manufacturing plants to operating critical instrumentation in process industries. In every application, air quality can be adversely affected by contaminants, such as water, oil and dirt. The result is lower productivity, increased maintenance, and higher operating costs. Van Air Systems compressed air dryers are an affordable and energy-free solution for preventing moisture condensation and freeze-ups in compressed air lines. Trust a high quality, energy-efficient compressed air dryer to keep your air system flowing. For more information, contact us at 02-168-3193-5, Hotline: 091-187-1111 or Line ID: @multiphase

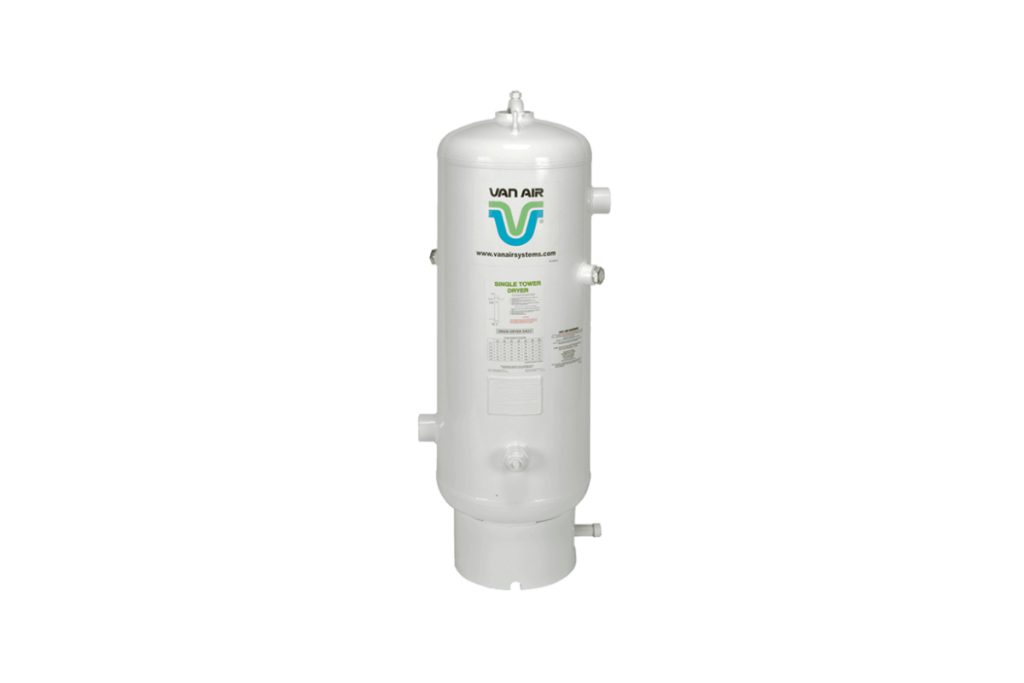

Single Tower Deliquescent Dryers
Van Air Systems D-Series Compressed Air Dryers are single tower deliquescent compressed air dryers for stationary applications. D-Series Dryers remove harmful water vapor from compressed air lines. Wet compressed air enters the bottom of the dryer and flows upward through a bed of deliquescent desiccant, which absorbs moisture as it slowly dissolves. Condensate drops to the bottom of the vessel to be drained. Dry compressed air exits the top of the vessel. When used with Dry-O-Lite desiccant, the D-Series Compressed Air Dryer automatically provides a dew point that is approximately 20°F lower than temperature of the air at the vessel inlet. For example, if the air inlet temperature is 80°F, the D-series Dryer delivers a 60°F dew point. If the air inlet temperature is 50°F, the dryer delivers a 32°F dew point.
Features & Benefits
- Low Cost
- No power required and no moving parts
- 10 year vessel warranty
- 20°F to 63°F dew point suppression
- Prevent air line freeze-ups

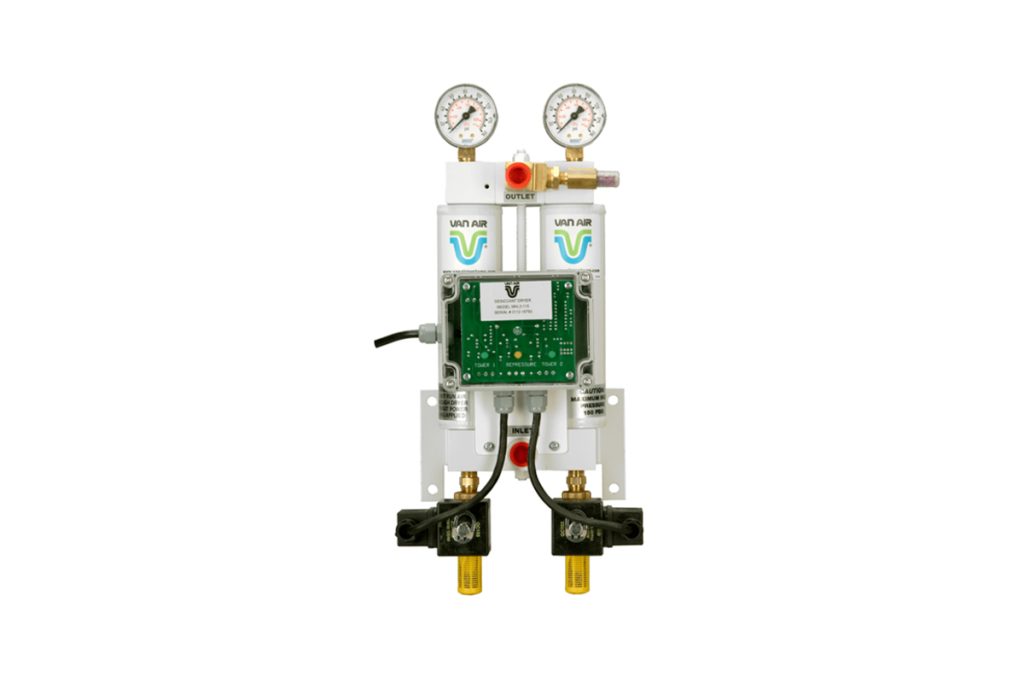

Mini Heatless Dryers
MHL-3 through MHL-50 are compact, simple to install, and easy to maintain. These dryers deliver a -40°F pressure dew point to protect pneumatic equipment and processes from the harmful and costly effects of moisture. When treating small volumes of compressed air, an MHL series heatless regenerative desiccant compressed air dryer can deliver dew points down to -100°F in critical applications. Clean and dry compressed air keeps the most vital pneumatic equipment and processes operating smoothly and efficiently.
Features & Benefits
- 3-50 SCFM
- Automatic Controller
- Solid state timer with LED status indicator lights for visual monitoring
- NEMA 4 electrical rating is standard (NEMA 4 optional)
- Easily serviceable components
- Low air velocity through the desiccant bed for efficient drying

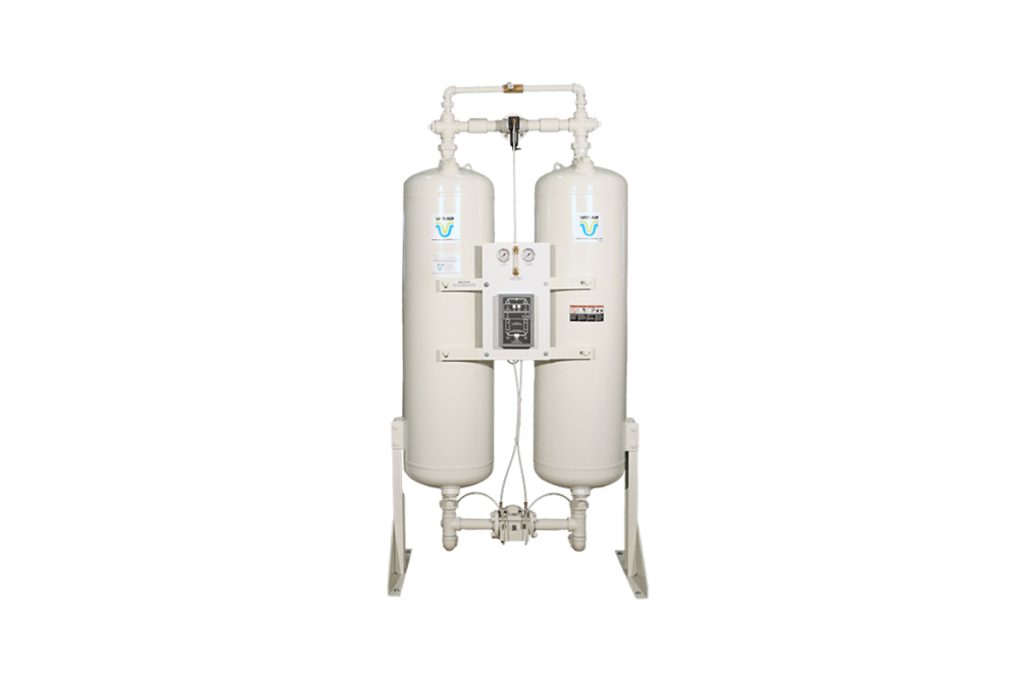

Large Heatless
All HL series compressed air dryers include patented Interlock Logic valve sequencing to protect compressed air systems from premature loss of flow or pressure. Interlock Logic guarantees that each phase of the drying cycle is completed before the next can begin. This ensures uninterrupted air flow at constant pressure for downstream equipment and prevents accidental vessel re-pressurization, a vital safety feature. HL series compressed air dryers have a full range of control features. Standard touchpad controllers (on models HL-2500 and below) include real-time status displays, plus a hold feature to preserve system pressure and conserve energy. The controller also features a switching failure monitor for immediate notification of any cycle disruption.
Features & Benefits
- 200-2000 SCFM
- Interlock logic 3-way transfer valve
- Solid state timer with LED status indicator lights for visual monitoring
- -40°F to -100°F pressure dew point
- ASME code stamped vessels
- Standard touch pad controller

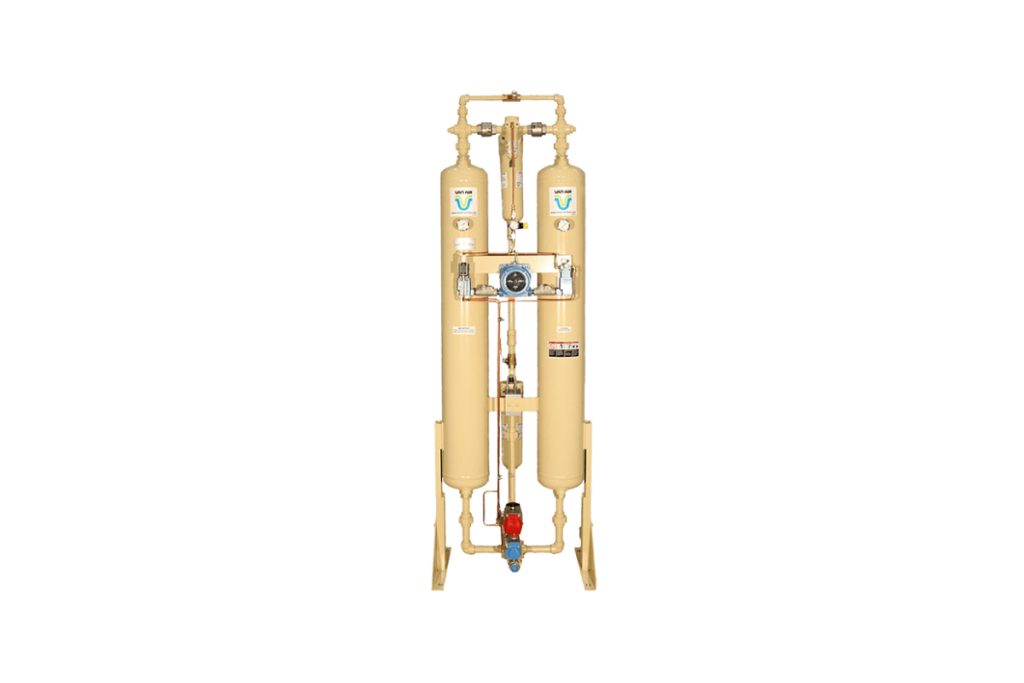

HLSXA Explosion Proof
The Van Air Systems HLSXA regenerative desiccant dryers provide extremely dry compressed air in hazardous environments where safety is critical. Built to Class 1 Division 1, Groups C & D standards, these explosion-proof dryers are designed for oil, gas, and petrochemical industries, ensuring reliable operation in confined spaces with explosive gases. All electrical components and enclosures are engineered to eliminate spark risks, guaranteeing safe and dependable performance.
Features & Benefits
- 55-800 SCFM at 100 PSIG
- -40°F pressure dew point
- Explosion proof controls, Class 1 Division 1 Groups C&D NEMA 4/7
- 250 PSID maximum working pressure
- Power supply 115V-1PH-60HZ or 12 V DV
- Small footprint for convenient installation

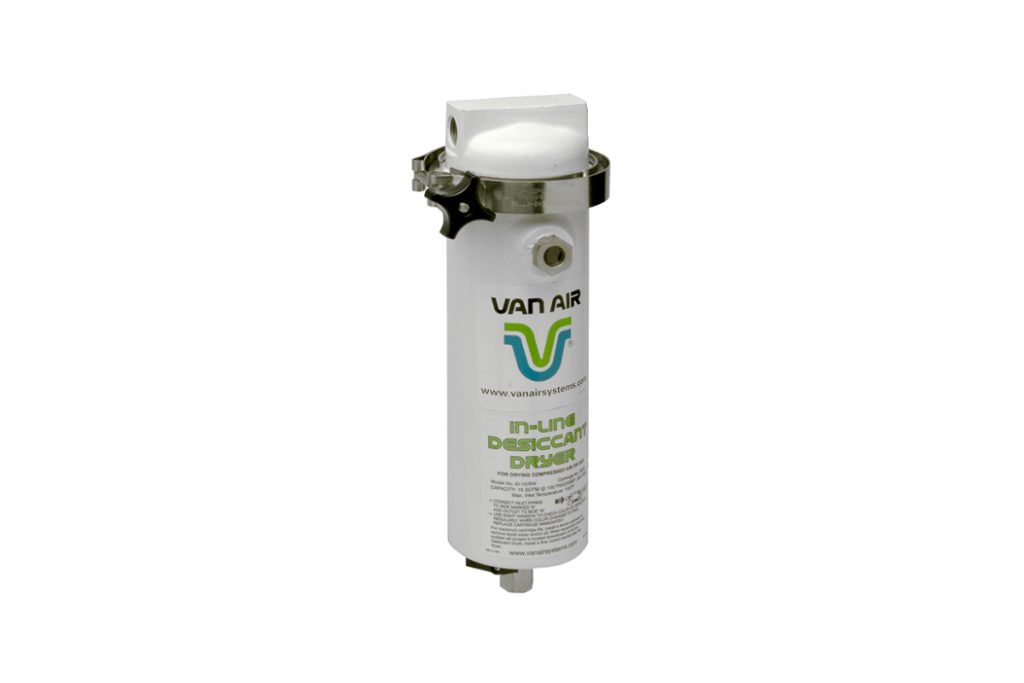

In-Line Desiccant Air Dryers
In-line desiccant dryers deliver extremely dry compressed air or natural gas in critical point of use
applications. With no moving parts and no power requirements, an in-line desiccant dryer can be
installed virtually anywhere. Each dryer consists of a charge of either color indicating silica gel
or molecular sieve, providing a -40ºF pressure dew point. Models ID15-SW and ID15-IND use a
disposable desiccant cartridge, making service quick and simple with no tools necessary. Model
ID35 holds a greater volume of loose color indicating silica gel, extending the service interval for
higher flow applications
Features & Benefits
- -40°F pressure dew point
- Low pressure drop, less than 1 PSID
- Industrial grade materials of construction
- No power or moving parts
- Ideal for intermittent flow applications
- Easily replaceable desiccant cartridge (ID-15 only)
- Visual indication of desiccant life
