DBB Valve
Oliver Valves’ Double Block and Bleed (DBB) Valves are precision-engineered to deliver true double isolation and positive sealing for maximum safety and efficiency. Designed as a modular, one-piece solution, the DBB valve eliminates the need for multiple valve assemblies, offering significant savings in space, weight, and installation cost compared to traditional three-valve configurations. Built for demanding applications, Oliver DBB valves provide reliable isolation and leak-tight performance for pressure instrument interfaces, vents, drains, sample and injection points, purge systems, and process flow isolation—particularly in systems handling hazardous, high-pressure, or critical fluids. With a compact and fully integrated design, these valves remove the necessity for welding or bolting multiple components together. This not only reduces installation time and labor costs but also minimizes potential leak paths, improving overall safety and long-term performance. For more information, contact us at 02-168-3193-5, Hotline: 091-187-1111 or Line ID: @multiphase

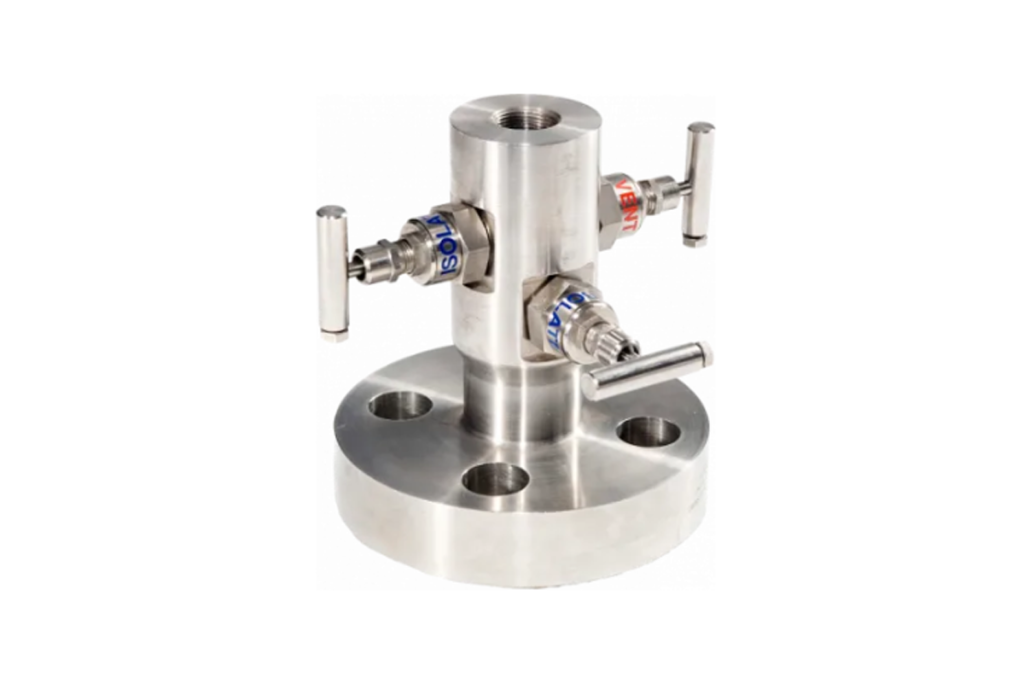

N Type Forged DBB
Machined from a single piece upset forging, our ‘N’ Type Double Block and Bleed Valves feature two-needle primary and secondary isolating valves and a needle valve. With a range of different operating temperatures and configurations, our Double Block and Bleed Valves are the superior market leader. Oliver Valves Double Block and Bleed valves provide Metal seating, with a 5.4mm bore for many applications without having to resort to traditional single isolate valves. Oliver Valves’ standard ‘N’ Type DBB range from 150lb up to 2500lb, but can also be rated to 10,000psi.
The N-type forged DBB valve is available in Stainless Steel, Carbon Steel, Duplex, Super Duplex and many other materials on request. We have various connection types and sizes are available, from Flanged, Hub, Threaded, to Welded. The standard temperature range up to 540 Deg C, depending on materials. All NPT connection threads are Single Point CNC machined. All Oliver products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.
Specifications
- Bore: 5.4 mm
- Connection Size: From ½” to 2.”
- Handle: ‘T’ Bar
- Packing: PTFE or Graphite
- PSI Ratings: From 150lb to 10,000PSI
- Temperature: p to 540 Deg C

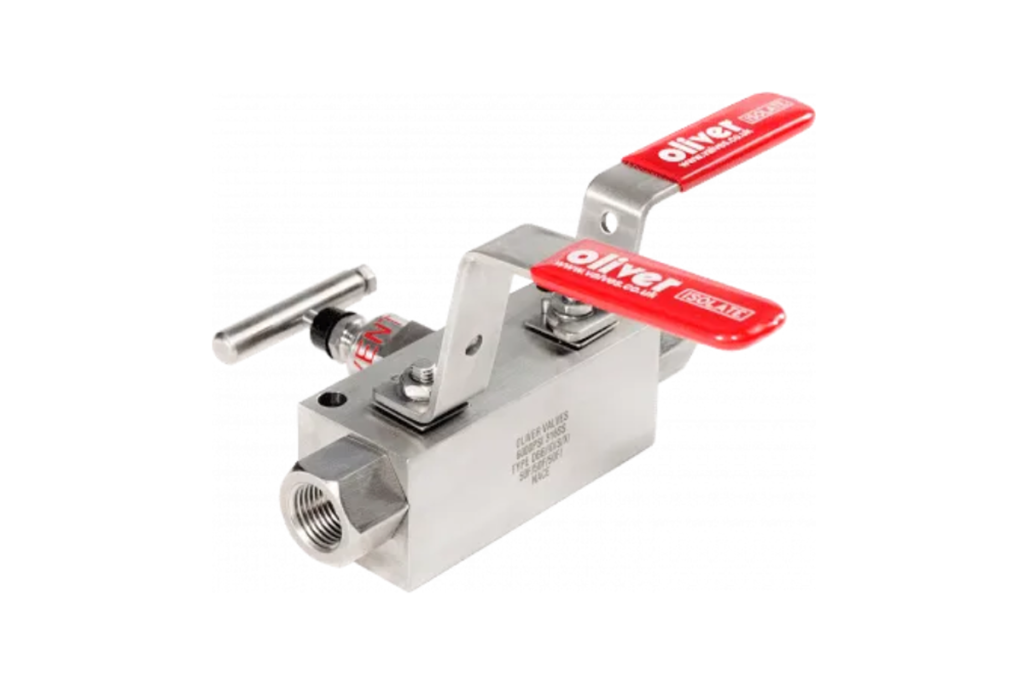

ID Type Instrument DBB Valves
Machined from forged bar, our ‘ID’ Type Double Block and Bleed Valves feature two inline ball pattern primary and secondary isolating valves and a heavy-duty needle vent valve. With a range of different operating temperatures and configurations, Double Block and Bleed Valves from Oliver Valves are the superior market leader. Our Double Block and Bleed valves provide Soft or Metal seating, with 10mm, 14mm, or 20mm bore isolation valves for many applications without having to resort to traditional single isolate ball valves.
The needle valve is supplied as standard with a non-rotating tip to allow linear closure while eliminating galling. Oliver Valves’ standard ‘D’ Type DBB range from ¼’ up to 1′. DBB Valves are available in Stainless Steel, Carbon Steel, Duplex, Super Duplex and many other materials on request. All Oliver Valves products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.
Specifications
- Bore: 10mm/14mm/20mm
- Connection Size: From 1/4″ to 1″
- Firesafe Standards: BS6755 Pt2, API 607, API 6FA, ISO 10497
- Handle: Lever & ‘T’ Bar
- Packing: PTFE or Graphite
- Seats: Soft (PCTFE/PEEK)
- Temperature: 240 Deg C

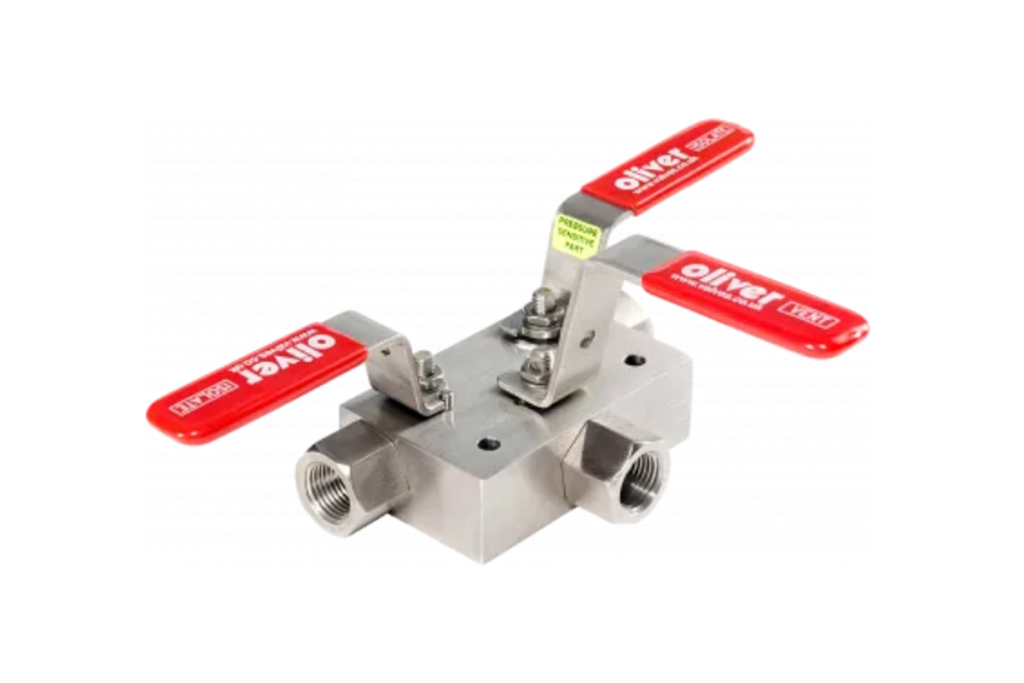

L Type Instrument DBB Valve
Machined from bar, our ‘L’ Type Double Block and Bleed Valves feature two inline ball pattern primary and secondary isolating valves and a ball valve vent. Our Double Block and Bleed Valves are the superior market leader with a range of different operating temperatures and configurations.The Double Block and Bleed valves provide Soft seating, with 10mm, 14mm, or 20mm bore isolation valves for many applications without having to resort to traditional single isolate ball valves.
Oliver Valves’ standard ‘L’ Type DBB range from ¼’ up to 1′. L Type Instrument DBB Valves are available in Stainless Steel, Carbon Steel, Duplex, Super Duplex and many other materials on request. With various other connection types and sizes are available, such as Hub, Threaded, Welded. They have a Standard Temperature range of up to 120 Deg C to 200 Deg C’“ Soft Seated. All NPT connection threads are Single Point CNC machined.
Specifications
- Bore: 10mm/14mm/20mm
- Connection Size: From ½” to 1.”
- Firesafe Standards: BS6755 Pt2, API 607, API 6FA, ISO 10497
- Handle: Lever and ‘T’ Bar
- Packing: PTFE or Graphite
- PSI Ratings: From 6,000PSI to 10,000PSI
- Seats: Soft (PCTFE/PEEK)
- Temperature: Up to 240 Deg C (soft seat)
