MROY SERIES
The mROY® Series from Milton Roy is a world-class solution for precise and reliable chemical dosing. With steady-state accuracy of ±1%, these pumps ensure unmatched performance even when handling the harshest chemicals. Engineered for maximum durability, the mROY design is compact yet robust, delivering consistent chemical injection with minimal maintenance. Many units have been proven to operate at design performance for over 20 years, making it one of the most trusted dosing pumps in the industry. For more information, contact us at 02-168-3193-5, Hotline: 091-187-1111 or Line ID: @multiphase
mRoy MRA Series
mROY series model A metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model A provides accurate dosing of a broad spectrum of fluids. Like all mROY metering pumps, model A is built to run continually all year long with preventative maintenance, leading to decades of consistent performance.
TECHNICAL
- Flow rate from 0.20 gph (0.8 l/hr) up to 79 gph (299 l/hr)
- Hydraulically balanced diaphragm with 96,000 hour design life
- Turndown ratios up to 10:1 for a full range of adjustments based on plant treatment requirements
- Accuracy ± 1.0% over a 10:1 turndown ratio
mRoy MRB Series
The mROY series model B metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model B provides accurate dosing of a broad spectrum of fluids. Like all mROY metering pumps, model B is built to run continually all year long with preventative maintenance, leading to decades of consistent performance.
TECHNICAL
- Flow rate from 3.3 gph (12.5 l/hr) up to 79 gph (299 l/hr)
- Hydraulically balanced diaphragm with 96,000 hour design life
- Turndown ratios up to 10:1 for a full range of adjustments based on plant treatment requirements
- Accuracy ± 1.0% over a 10:1 turndown ratio

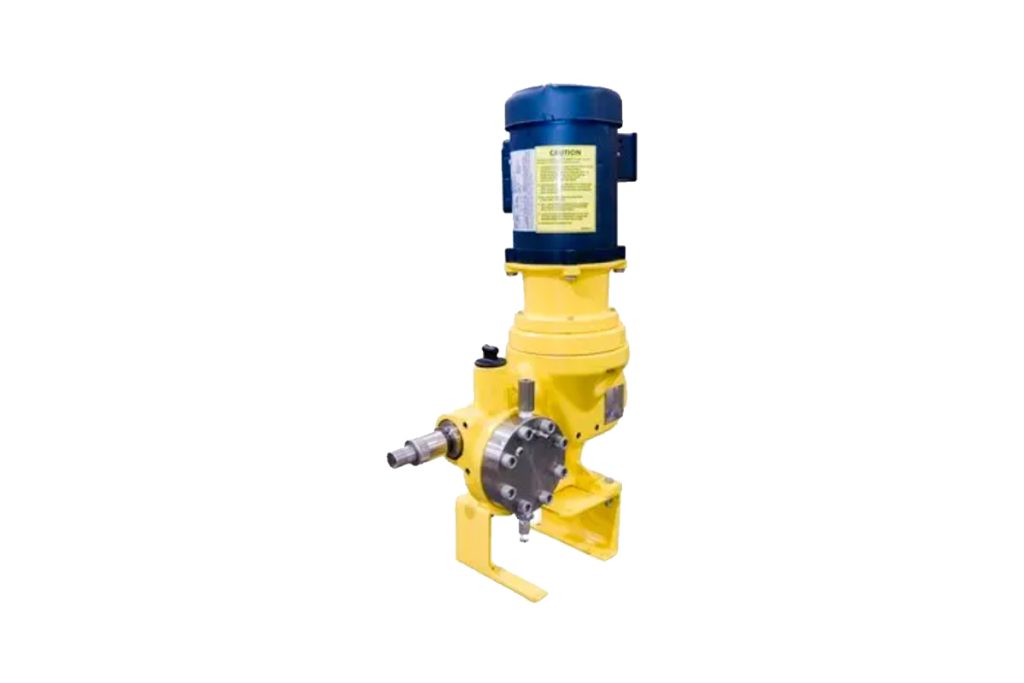

mRoy XT Series
mROY series model XT metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model XT provides accurate dosing of a broad spectrum of fluids. Like all mROY metering pumps, model XT is built to run continually all year long leading to decades of consistent performance.
TECHNICAL
- Flow rate up to 2.2 gph (8.3 l/hr) and pressure rating up to 3000 PSI (207 bar)
- Ambient temperature up to 20°F (-6°C) to 120°F (49°C) on standard product
- Liquid temperature up to 50°F (10°C) to 300°F (149°C) with modifications on standard product
- Turndown ratios up to 10:1 with constant speed motor
- Accuracy ± 1.0% and Repetitive accuracy ± 3.0%

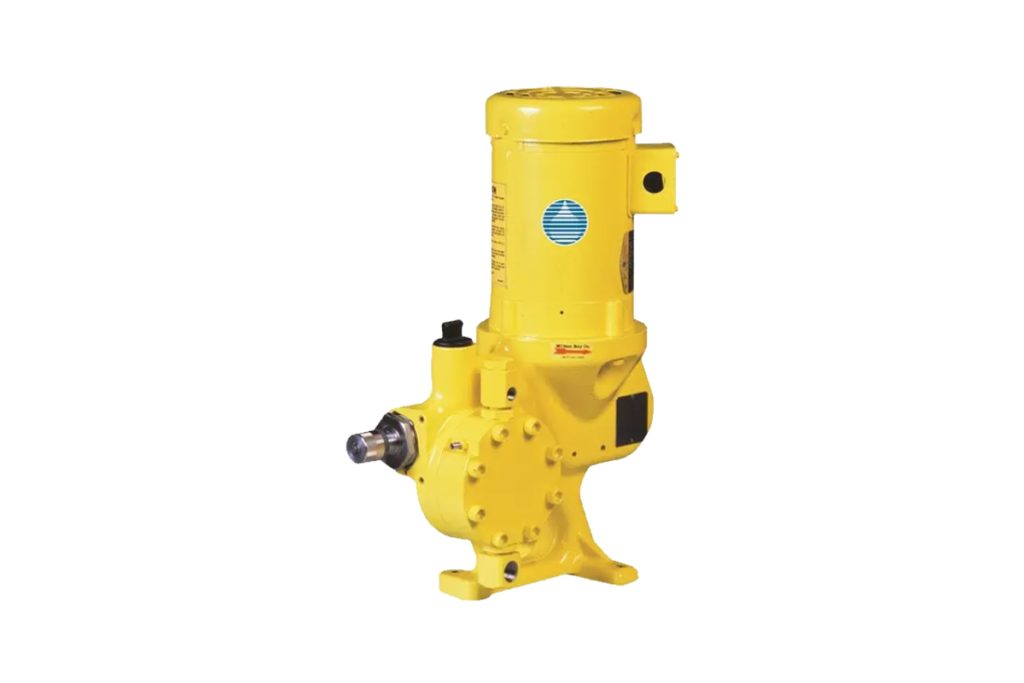

mRoy XW Series
mROY series model XW metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model XW provides accurate dosing of a broad spectrum of fluids. Like all mROY metering pumps, model XW is built to run continually all year long leading to decades of consistent performance.
TECHNICAL
- Flow rate up to 9.2 gph (34.8 l/hr) and pressure rating up to 3000 PSI (207 bar)
- Ambient temperature up to 20°F (-6°C) to 120°F (49°C) on standard product
- Liquid temperature up to 50°F (10°C) to 300°F (149°C) with modifications on standard product
- Turndown ratios up to 10:1 with constant speed motor
- Accuracy ± 1.0% and Repetitive accuracy ± 3.0%
